Lathes

GMT-2000 Series integrates turning-center power with machining-center flexibility in one platform. It supports up to 9-axis control and 5-axis simultaneous machining, enabling turning, milling, and gear hobbing in a single setup. Options include twin spindle, tool spindle up to 12,000 rpm, and up to 120 tools.

SW-42 is a Swiss-type turning center for medium-sized precision parts, combining hybrid guide bush operation with complete tooling for front, cross, and rear machining in one process. It supports Ø42 mm machining, 6,000 rpm main and sub-spindles, and production-ready part handling.

SK-38 is a multi-tasking Swiss turning center built for larger diameters and complex parts. It supports Ø38 mm machining with guide bush or Ø42 mm in bushless mode, up to 320 mm turning length per chuck, and up to 9-axis control for simultaneous machining.

SW-Ⅱ Series is a multi-tasking Swiss turning platform for precision small parts, combining hybrid guide bush (bush or bushless), complete front/cross/rear machining, and sub-spindle workflows. SW-20Ⅱ covers Ø20 mm, SW-32Ⅱ up to Ø32 mm, with high spindle speeds and production-focused tooling.

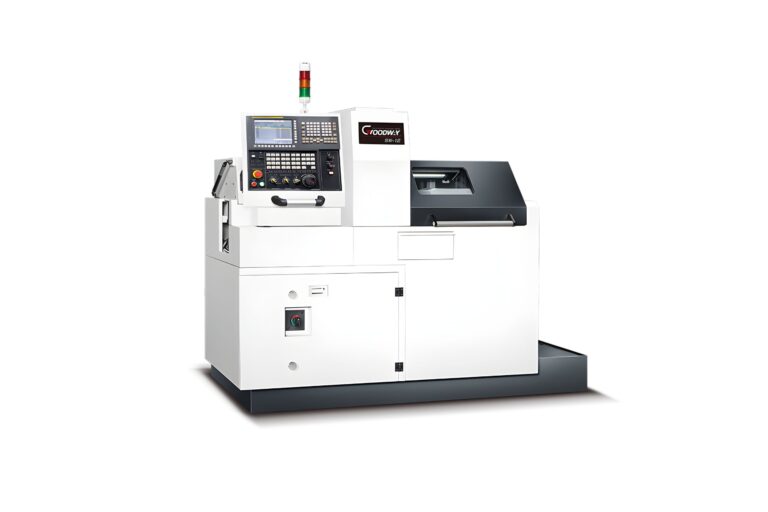

SW-12 is a compact Swiss-type turning center for precise miniature parts. It supports up to Ø13 mm machining diameter and 140 mm turning length, with a 10,000 rpm spindle (3.7 kW) and 32 m/min rapids. Hybrid guide bush design allows bush or bushless mode to match the job.

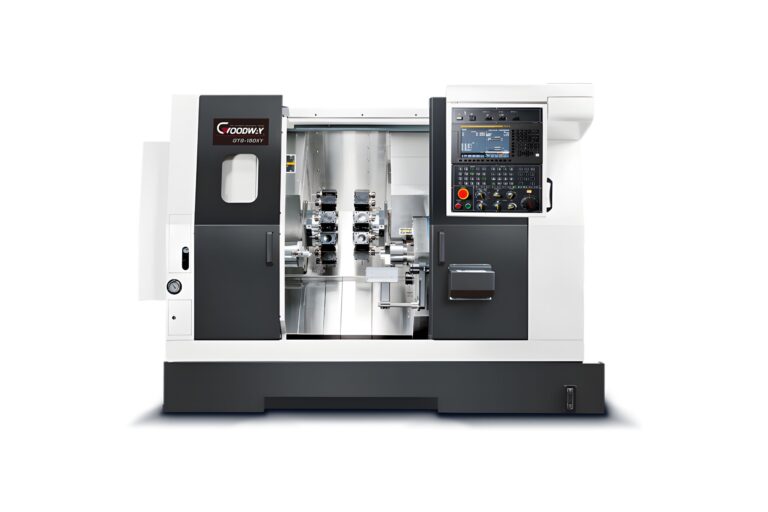

GTS-150 is a compact twin-spindle, twin-turret CNC turning center designed for true simultaneous machining in one setup. It runs a 6″ chuck with Ø42 mm bar capacity and Ø180 mm turning range, up to 6,000 rpm, with optional live tooling and Y-axis capability.

Compact high-speed turning platform for production work. GLS-150 supports up to Ø360 mm turning diameter (Ø280 mm on M models), 500 mm turning length, a 6″ chuck, and Ø51 mm bar capacity. Its two-speed motor-driven spindle reaches up to 6,000 rpm.

SUPER GV is a family of CNC vertical turning centers for oversized, heavy workpieces. The GVH-2000, GVH-2500 and GVB-3000 models provide table diameters from Ø2,000 to Ø3,000 mm, turning diameters up to Ø3,500 mm and table loads up to 20,000 kg in the listed base configurations. Optional tooling spindles, C-axis control and dual-ram arrangements extend the machining possibilities.

GV-1000 is a CNC vertical turning center for large chuck components and demanding cutting operations. It provides Ø1,000 mm maximum turning diameter and 760 mm turning height, with a 22/30 kW spindle and a 2-speed gearbox. Optional live tooling and C-axis control add milling, drilling and tapping capabilities.
