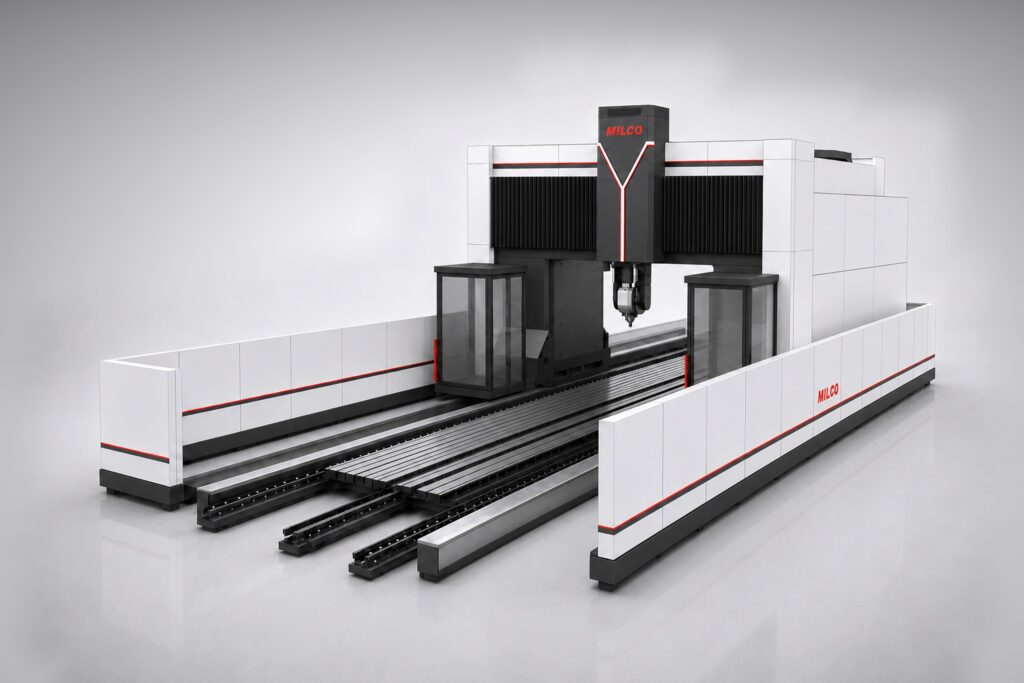

VMC – VITOSHA Gantry Series

Gantry platform for wide spans and tall envelopes. Open access and consistent reach across wide surfaces simplify loading and multi-station setups, while smooth motion and 30 m/min rapids help preserve accuracy and cycle efficiency on large plates, frames, and weldments.

  • Wide-span capability for tall or multi-station setups
  • Clear access that speeds loading and fixturing
  • Smooth motion and 30 m/min rapids for efficient long moves
Model Code / Name: VITOSHA Gantry Series

Brand:

  • MILCO LTD

Overview

Gantry-Type Moving Column Machining Platform

The VMC series is a wide-span gantry platform designed for large plates, frames, weldments, and tall structures requiring open access and consistent reach across wide surfaces. Its moving-column layout enhances accessibility, simplifies fixturing, and supports multi-station production setups.

With large axis capacities (X 4–25 m, Y 3–6 m, Z 1.5–1.75 m) and 30 m/min rapids, VMC maintains smooth, composed motion across long strokes. The BIG-PLUS ISO50 spindle (47 kW, 976 Nm) provides high torque for roughing and sufficient speed for finishing.

Key Features – VMC

Wide-Span Gantry Architecture

Excellent access and stability for large-format machining.

Large Axis Range

Configurable for extreme-length plates and multi-station setups.

30 m/min Rapids on All Axes

Improves throughput over long movements.

High-Torque BIG-PLUS Spindle

Dual-contact interface for stability and repeatability.

All machines are also available in full cast-iron structural configuration upon request, ensuring maximum vibration damping and thermal stability for demanding environments.

HEADS

MILCO Ltd head portfolio (compatible across machine families):

1

Universal 45° – 2.5° × 2.5° (Automatic Change)

2

Universal 45° – 1° × 1° (Automatic Change)

3

Universal 45° – 2.5° × 2.5° (Integrated)

4

Orthogonal Head – 2.5° × 2.5° (Integrated)

Specifications

Category

Item

Unit

Value

TRAVERSES

Longitudinal — X

mm

4000–25000

Cross — Y

mm

3000–6000

Vertical — Z

mm

1500 / 1750

FEEDS

Maximum — X

m/min

30

Maximum — Y

m/min

30

Maximum — Z

m/min

30

SPINDLE SPECIFICATIONS

Taper

—

DIN69871 (ISO50) Big Plus

Programmable speed

rpm

4000 to 8000

Maximum power

kW

47

Maximum torque

Nm

976

Applications

General machining

VITOSHA Gantry can face-mill wide plates and machine steps or pockets near opposite edges. The moving gantry reaches across the workpiece while the plate remains in the same setup.

Capital goods

On wide machine beds, VITOSHA Gantry can mill the seats for two parallel guide rails in one setup. Both seats are machined from a common datum along the length of the bed.

Automotive

For body-in-white welding fixtures, VITOSHA Gantry can machine large baseplates with locating pockets and clamp mounting pads on both sides of the vehicle centreline.

Energy

VITOSHA Gantry can face-mill large covers for industrial pump casings. The wide working area allows the full mating face to be finished from a single clamping position.

Oil & Gas

On large manifold blocks, VITOSHA Gantry can mill rows of valve mounting pads across the upper face. The pads can be finished to a common plane before the valves are installed.

Wind energy

On wide wind turbine bedplates, VITOSHA Gantry can mill the paired seats for gearbox torque arms. Machining both sides in one setup establishes their relative position across the frame.

Railway

After a bogie frame is welded, VITOSHA Gantry can mill the suspension mounting pads on its left and right sides. Both sets of pads can be referenced to the same plane across the frame.
